Landscape Modeling

tutorial

ecology

grass

python

Landscape modeling with GRASS.

Author

Brendan Harmon

Published

September 6, 2026

Modified

September 12, 2026

Learn how to generate fractal terrain, derive landcover from the terrain, and draw landcover with the raster digitizer.

Landcover categories
Value	Category
11	Open Water
21	Developed, Open Space
22	Developed, Low Intensity
23	Developed, Medium Intensity
24	Developed, High Intensity
31	Barren Land
41	Deciduous Forest
42	Evergreen Forest
43	Mixed Forest
52	Shrub/Scrub
71	Grassland/Herbaceuous
81	Pasture/Hay
82	Cultivated Crops
90	Woody Wetlands
95	Emergent Herbaceuous Wetlands

Setup

Start a GRASS session in a project with a Cartesian coordinate system.

# Import modules
import io
import sys
import subprocess
from pathlib import Path
from contextlib import suppress

# Find GRASS Python packages
sys.path.append(
  subprocess.check_output(
    ["grass", "--config", "python_path"],
    text=True
    ).strip()
  )

# Import GRASS packages
import grass.script as gs
import grass.jupyter as gj
from grass.tools import Tools

# Create and initialize GRASS project
try:
    gj.init("cartesian")
except ValueError:
    with suppress(ValueError):
        gs.create_project("cartesian")
        gj.init("cartesian")
tools = Tools(overwrite=True)
tools.g_proj(format="plain", flags="p").text

Set computational region

g.region

# Set region
tools.g_region(n=200, s=0, e=800, w=0, res=1)

Generate fractal terrain

r.surf.fractal

# Generate fractal terrain
tools.r_surf_fractal(output="fractal", dimension=2.25, seed=24)

# Model river valleys
tools.r_mapcalc(expression="terrain = abs(fractal) / 10")

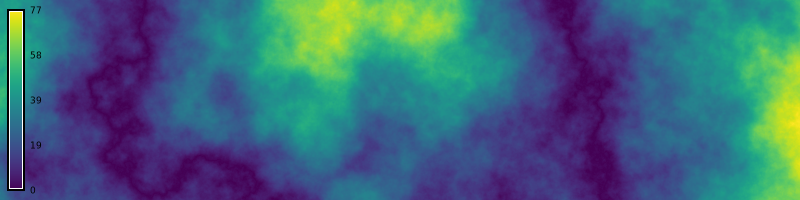

# Visualize
m = gj.Map(width=800)
m.d_rast(map="terrain")
m.d_legend(raster="terrain", at=(5, 95, 1, 3))
m.show()
m.save("images/landscape-01.webp")

# Print elevation range
info = tools.r_info(map="terrain", flags="r", format="json")
print(f"Mininum elevation: {info["min"]:05.2f}")
print(f"Maximum elevation: {info["max"]:05.2f}")

Model rivers

r.mapcalc r.colors

# Derive river from elevation gradient
tools.r_mapcalc(expression = "landcover = if(terrain <= 2, 11, 31)")

# Derive wetlands from elevation gradient
tools.r_mapcalc(expression = "landcover = if(terrain > 2 && terrain <= 6, 95, landcover)")

# Derive woody wetlands from elevation gradient
tools.r_mapcalc(expression = "landcover = if(terrain > 6 && terrain < 10, 90, landcover)")

# Set landcover colors
tools.r_colors(map="landcover", color="nlcd")

# Visualize
m = gj.Map(width=800)
m.d_rast(map="landcover")
m.show()
m.save("images/landscape-02.webp")

Classify landforms

r.grow r.geomorphon

# Classify landforms
tools.r_grow(input="terrain", output="elevation", radius=25)
tools.r_geomorphon(elevation="elevation", forms="landforms", search=25, skip=5, flat=1, dist=0)

# Visualize

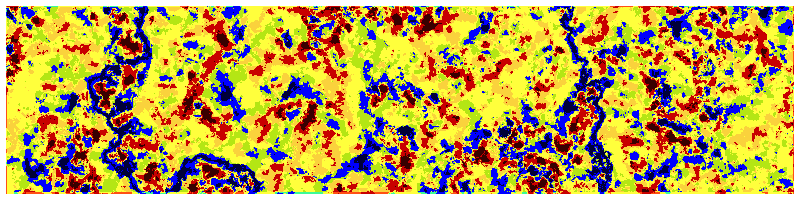

m = gj.Map(width=800)
m.d_rast(map="landforms")
m.show()
m.save("images/landscape-03.webp")

Model uplands

r.mapcalc

# Derive grass from elevation gradient
tools.r_mapcalc(expression = "landcover = if(terrain > 15, 71, landcover)")

# Derive shrubs from elevation gradient
tools.r_mapcalc(expression = "landcover = if(terrain > 30, 52, landcover)")

# Derive shrubs from landforms
tools.r_mapcalc(expression = "landcover = if(landcover == 71 & terrain > 25 & landforms < 7, 52, landcover)")

# Derive deciduous forest from elevation gradient
tools.r_mapcalc(expression = "landcover = if(terrain > 35, 41, landcover)")

# Derive mixed forest from landforms
tools.r_mapcalc(expression = "landcover = if(terrain > 35 && landforms == 6, 43, landcover)")

# Derive evergreen forest from landforms
tools.r_mapcalc(expression = "landcover = if(terrain > 35 && landforms < 6, 42, landcover)")

# Visualize
m = gj.Map(width=800)
m.d_rast(map="landcover")
m.show()
m.save("images/landscape-04.webp")

Model wetlands

r.fill_dir r.mapcalc

# Find depressions
tools.r_fill_dir(input="terrain", output="fill", areas="areas", direction="direction")

# Calculate depth
tools.r_mapcalc(expression = "ponds = terrain - fill")

# Derive ponds from depressions
tools.r_mapcalc(expression = "landcover = if(terrain > 10 && terrain < 30 && ponds < -0.5, 11, landcover)")

# Derive wetlands from depressions
tools.r_mapcalc(expression = "landcover = if(terrain > 10 && terrain < 30 && ponds < -0.5  && ponds > -1.0, 95, landcover)")

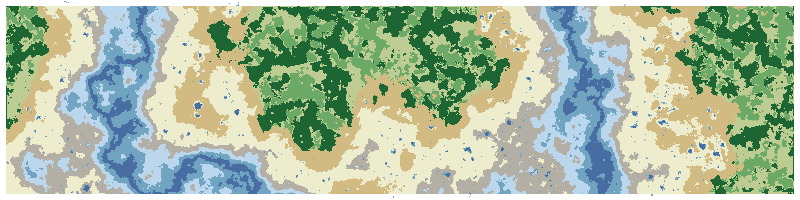

# Visualize
m = gj.Map(width=800)
m.d_rast(map="landcover")
m.show()
m.save("images/landscape-05.webp")

Define landcover categories

categories = """\
11|Open Water
12|Perennial Ice/Snow
21|Developed, Open Space
22|Developed, Low Intensity
23|Developed, Medium Intensity
24|Developed, High Intensity
31|Barren Land
41|Deciduous Forest
42|Evergreen Forest
43|Mixed Forest
51|Dwarf Scrub
52|Shrub/Scrub
71|Grassland/Herbaceuous
72|Sedge/Herbaceous
73|Lichens
74|Moss
81|Pasture/Hay
82|Cultivated Crops
90|Woody Wetlands
95|Emergent Herbaceuous Wetlands
"""

r.category

# Set landcover categories
tools.r_category(map="landcover", separator="pipe", rules=io.StringIO(categories))

# Visualize

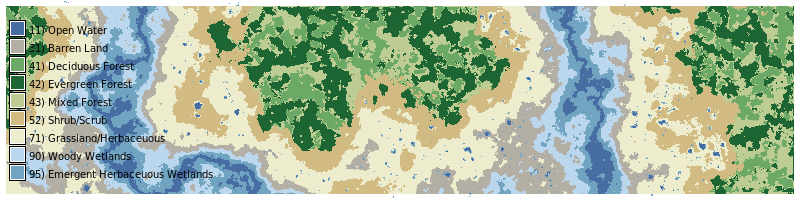

m = gj.Map(width=800)
m.d_rast(map="landcover")
m.d_legend(raster="landcover", at=(5, 95, 1, 3), use=(11,31,41,42,43,52,71,90,95))
m.show()
m.save("images/landscape-06.webp")

Draw landcover

g.gui.rdigit

# Generate fractal terrain
# tools.r_surf_fractal(output="fractal", dimension=2.25, seed=27)
tools.r_surf_fractal(output="fractal", dimension=2.01, seed=27)

# Model river valleys
tools.r_mapcalc(expression="terrain = abs(fractal) / 10")

# Derive river from elevation gradient
tools.r_mapcalc(expression = "landcover = if(terrain <= 2, 11, 31)")

# Derive wetlands from elevation gradient
tools.r_mapcalc(expression = "landcover = if(terrain > 2 && terrain <= 6, 95, landcover)")

# Derive woody wetlands from elevation gradient
tools.r_mapcalc(expression = "landcover = if(terrain > 6 && terrain < 10, 90, landcover)")

# Set landcover colors
tools.r_colors(map="landcover", color="nlcd")

# Visualize
m = gj.Map(width=800)
m.d_rast(map="landcover")
m.show()
m.save("images/landscape-07.webp")

g.gui.rdigit

# Digitize
tools.g_gui_rdigit(edit="landcover", type="CELL")

# Set landcover categories
tools.r_category(map="landcover", separator="pipe", rules=io.StringIO(categories))

# Visualize

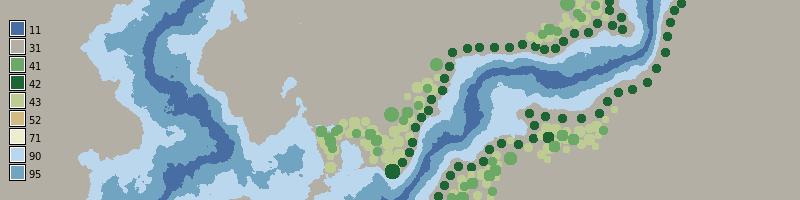

m = gj.Map(width=800)
m.d_rast(map="landcover")
m.d_legend(raster="landcover", at=(5, 95, 1, 3), use=(11,31,41,42,43,52,71,90,95))
m.show()
m.save("images/landscape-08.webp")
